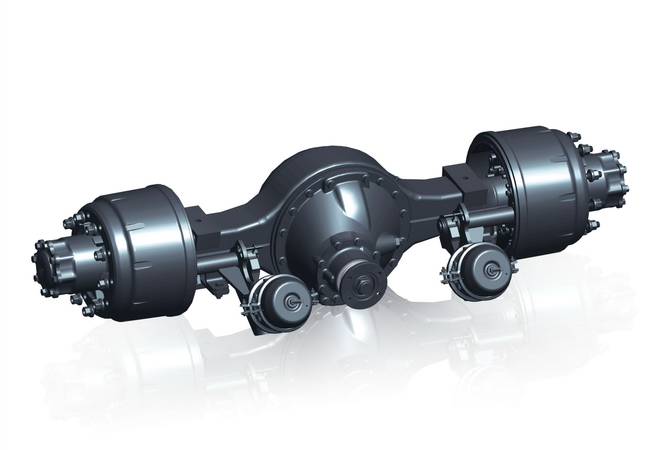

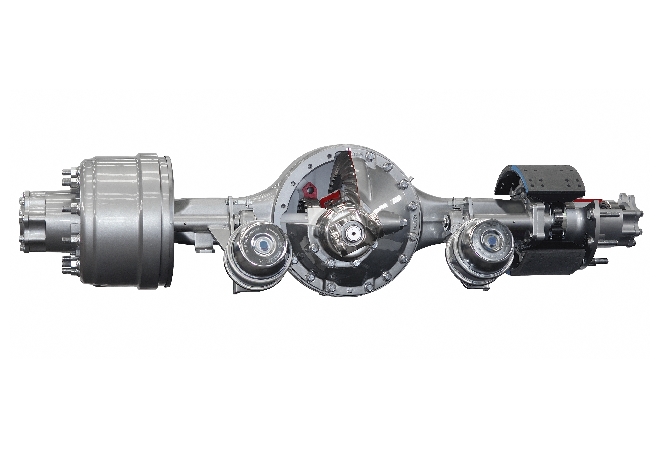

❶ High capacity hypoid gears
❷ Premium seal design
❸ High quality Welded housing
❹ Large range of FUWA drum brakes
❺ Precision forged differential gears
❻ Several configurations and sizes
❼ Rolled splines and threads
❽ Available with ABS and automatic slack adjuster
❾ Strong bolted joints with special self locking bolts
● Load Capacity
Gross Axle Weight：13000Kg
Gross Combined Weight（On-Highway Application）：60000Kg
● Track（Other options are possible upon request）
1860mm（STD）、1830mm（Optional）
● Mounting Center
950～1040mm
● Hypoid Gear
Master Diameter：Φ510mm
Face Width：88mm
Ratios（Other options are possible upon request）：3.08、3.17、3.38、3.70、4.11、4.22、4.44、4.62、4.75、5.29、6.17、6.83
● Housing
Box Section：160x160mm
Wall Thickness：16mm
Friction welding：Φ150mm
● Axle Shaft
Body Diameter：Φ57.5mm
Spline：Φ59.6mm-46 teeth
● Brake（Other options are possible upon request）
410x220mm、410x200mm、410x180mm
● Wheel Mounting（Other options are possible upon request）
Φ335mm-10 studs M22x1.5
